Inside a Proper Mazda 5 Transmission Service: Why the Pan-Drop Step Matters
Drivers are routinely quoted $400 for a "transmission flush" that leaves the most contaminated part of the transmission untouched. Here's what a complete service looks like — with photographs from a recent job.
The Service, Step by Step
The way automatic transmission service is typically sold doesn't always match the way it should be performed. Drivers are routinely quoted $400 or more for a "transmission flush" — a process that, on its own, leaves the most contaminated part of the transmission untouched.
We'd like to show you, with photographs from a recent job, exactly what a complete service involves — and why it costs less when scoped honestly.
A customer recently brought us a 2007 Mazda 5 with the FN4A-EL 4-speed automatic, approaching 130,000 miles. The vehicle had no major drivability complaints; the owner simply knew the service was overdue. Here is what we did, what we found, and why our $250 service is more thorough than the $400+ flush sold elsewhere.
Six Steps to a Complete Service
- 1
Bring to operating temperature
Warm fluid flows properly, drains completely, and reads accurately on the dipstick. This applies to both the drain and the final fill check.
- 2
Drain and measure the fluid
Capturing every drop and measuring the volume tells us whether the prior fill level was correct and gives a baseline for the refill.
- 3
Remove the transmission pan
Sixteen bolts and a gasket separate the pan from the transmission case. Once removed, the interior is accessible — including the pan magnet.
- 4
Clean the pan and magnet to bare metal
The magnet captures ferrous wear particles over years of normal operation. We scrub it, the pan walls, and the pan floor completely clean.
- 5
Inspect the filter, replace the gasket
No RTV silicone shortcuts. Correct gasket, correct torque sequence, correct torque specification.
- 6
Refill and verify at operating temperature
This transmission requires Mazda ATF M-V, filled and checked using the manufacturer's procedure — not a cold fill, not an approximation.
What Most Shops Skip
Step 3 — the pan drop — is the one most service offerings omit.
A power-flush machine circulates new fluid through the cooler lines. It does not access the pan. After a $400 flush, the metallic paste on the magnet remains exactly where it was, and the fresh fluid circulates past it from day one.
There is also a technical reason a pan-drop is the appropriate approach for older Mazda 5s: aggressive power-flushing can dislodge debris that a high-mileage transmission may not tolerate. A careful pan-drop service is gentler on tired internals while actually removing the contamination rather than redistributing it.

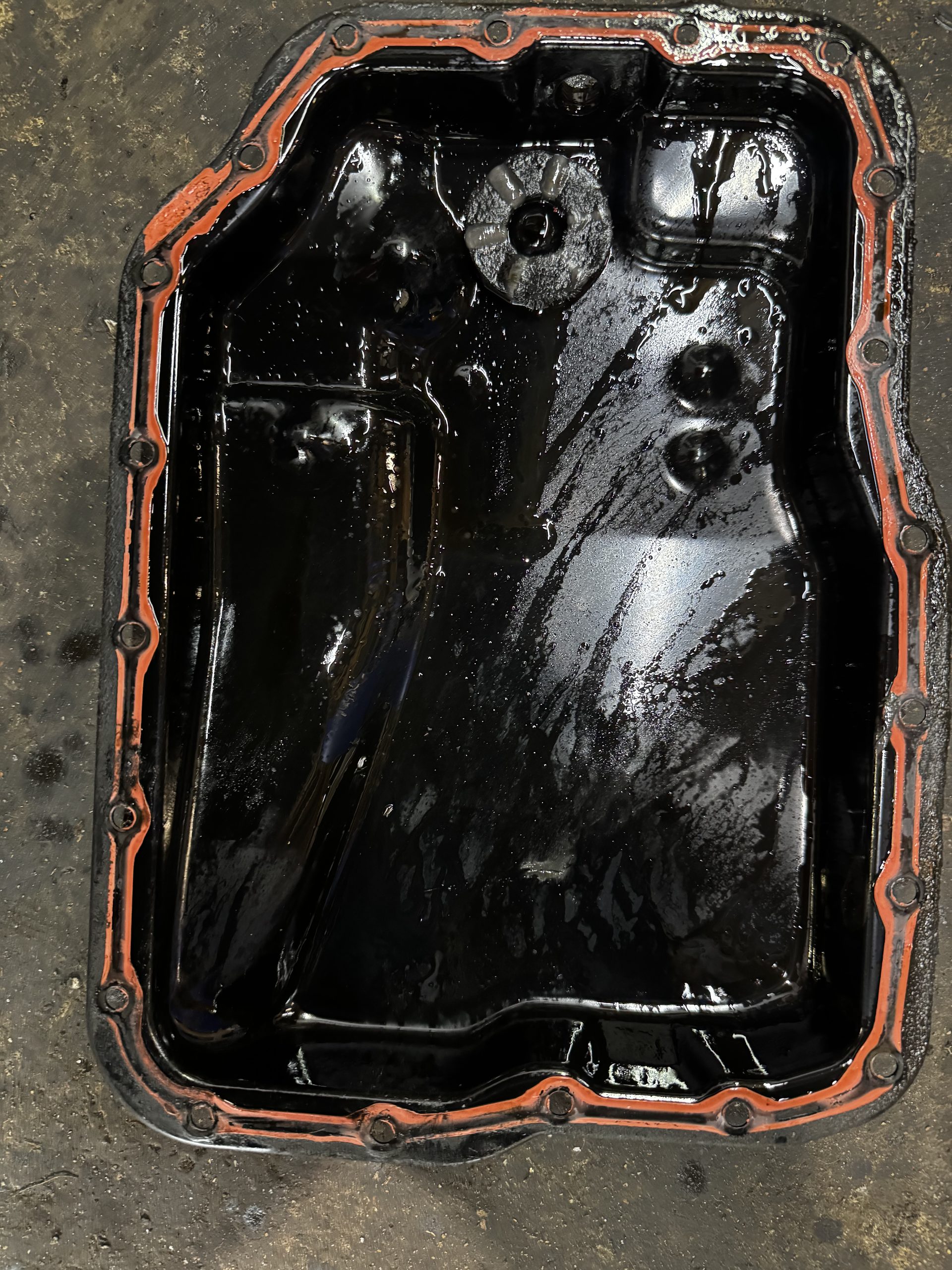

Nineteen Years on the Magnet
The only way to see this is to drop the pan.
The pan magnet shown below carried roughly nineteen years of normal wear: a fine metallic coating suspended in dark, oxidized fluid. To be clear, this buildup is not in itself a sign of damage — it is evidence that the magnet has been doing its job. The problem arises when no one removes it.
A power-flush machine circulates new fluid through the transmission's cooler lines. It does not — and cannot — lift contamination off a magnet sitting at the bottom of the pan. After a $400 flush, that paste remains exactly where it was, and the fresh fluid circulates past it from day one.
The only way to remove the contamination is to remove the pan.

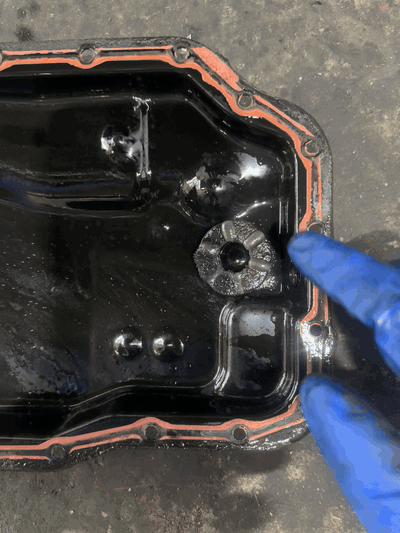

The Magnet — Close Up
Watch the technician inspect the magnet as it comes out of the pan. The metallic coating you see is normal accumulation from clutch material and gear tooth contact — the magnet is doing exactly what it was designed to do. The issue is that this service was long overdue, and the buildup had grown dense enough to hold fresh fluid away from the magnet surface.
Every subsequent service that skips the pan drop leaves this layer undisturbed and adds another cycle on top. Over time, contamination reaches a level where it begins affecting fluid quality and valve body function — the first steps toward a transmission that shifts poorly, slips, or fails entirely.

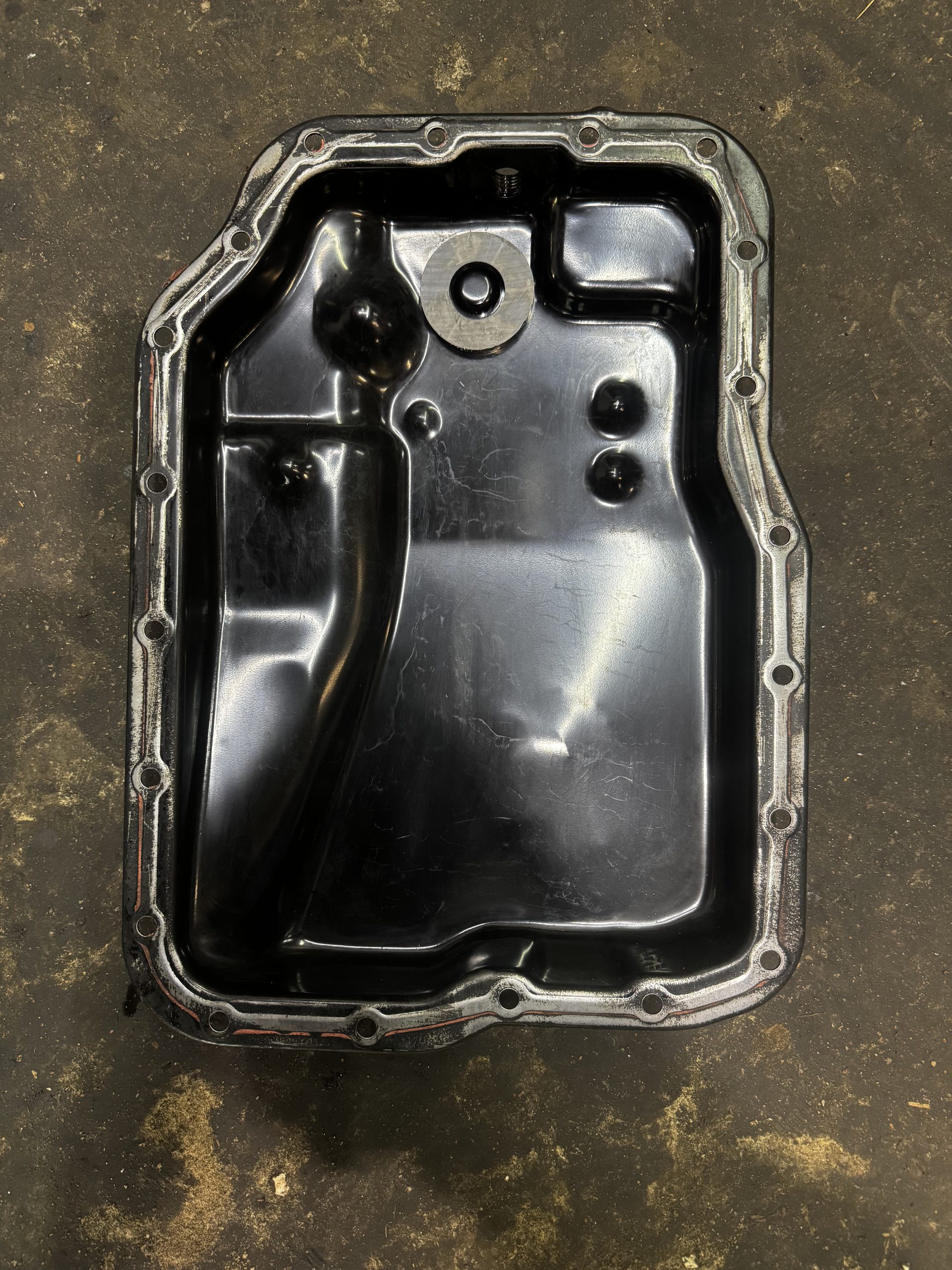

The Result — Bare Metal, Ready for Another Interval
Our pricing isn't lower because we skip steps. It's lower because the work is scoped honestly: we charge for time and parts, not for an upsold service that omits the most important step.
There is also a technical reason a pan-drop is the appropriate approach for older Mazda 5s — and for any vehicle in this transmission family, including older Ford and Mercury models that share the FN4A-EL. Aggressive power-flushing can dislodge debris that a high-mileage transmission may not tolerate; a careful pan-drop service is gentler on tired internals while actually removing the contamination rather than redistributing it.
That is the difference between thorough and theatrical.
The Bill — $250. More Thorough Than the $400 Flush.
Our pricing isn't lower because we skip steps. It's lower because the service is scoped honestly.
Drain and measure transmission fluid
Warm drain, volume captured
Included
Transmission pan removal (16 bolts)
Pan dropped, interior exposed
Included
Pan magnet cleaning to bare metal
All ferrous wear deposits removed
Included
Pan floor and walls scrubbed clean
Fresh start for next service interval
Included
Filter inspection
Condition documented
Included
New gasket, correct torque sequence
No RTV sealant shortcuts
Included
Refill with Mazda ATF M-V
Correct spec fluid, verified at operating temp
Included
Total Charged
Labor and fluid included.
$250
| Service | Most Atlanta Shops | BR Prestige Auto |
|---|---|---|
| Power flush (cooler lines only) | $350 – $450 | Not offered |
| Pan drop + magnet clean + new gasket | Rarely available | Standard |
| Complete pan-drop service | $400 – $500+ | $250 |
Why the gap? We charge for time and parts, not for an upsold service that omits the most important step. The pan-drop requires more labor than a flush, which is why most shops avoid it. We don't.
Who Should Consider This Service
If your service records don't document a previous pan-drop on your Mazda 5, this service is worth scheduling.
Daily Drivers
If your vehicle is your daily driver and you depend on it, proactive maintenance after 80,000 miles is the most cost-effective way to avoid a future transmission replacement, which can exceed $4,000.
Technical Buyers
If you appreciate technical detail, the pan-drop is the difference between a service that documents what is actually inside your transmission and one that hides it. We'll show you the pan when we are done.
Comparing Quotes
We'd encourage you to compare scope before scope is locked. Total cost of ownership over the next 50,000 miles is what matters most, and a proper pan-drop service is the most affordable insurance against a transmission rebuild.
Frequently Asked Questions
Common questions about Mazda 5 transmission service in Atlanta.
What is the difference between a transmission pan drop service and a power flush?
How much does a Mazda 5 transmission service cost in Atlanta?
What happens if the transmission pan magnet is never cleaned?
How often should a Mazda 5 automatic transmission be serviced?
Do you service Mazda vehicles across Atlanta, Buckhead, and Peachtree Corners?
Transmission Service Across the Atlanta Metro
From Buckhead to Alpharetta, we service Mazda vehicles and all makes across the full metro area — with the transparency that lets you see exactly what was done.
Mazda 5 Transmission Service in Atlanta — What Honest Looks Like
The service most shops skip: Dropping the transmission pan to clean the magnet. A standard power flush exchanges the fluid but leaves the most contaminated component — the pan magnet — completely untouched. On a high-mileage vehicle, that magnet can carry years of metallic wear that circulates back into fresh fluid from the moment it's filled.
Why our $250 service is the better choice over a $400 flush: We charge for what the service actually requires — pan removal, magnet cleaning, new gasket, correct fluid, level verified at operating temperature. Not for a markup on a machine that plugs into the cooler lines and calls it done.
What transparency looks like at a boutique shop: We show you the pan before we reinstall it. You see what was in there. You leave knowing the work was done completely. Browse our full service offerings or read more on our auto repair blog.
Book a Mazda 5 Transmission Service in Atlanta
We are BR Prestige Auto LLC, a licensed Georgia dealer and independent service shop in Peachtree Corners, serving Buckhead, Midtown, Norcross, Duluth, Johns Creek, Sandy Springs, Dunwoody, and the greater Atlanta metro.
If you have been quoted $400 or more for a transmission flush elsewhere, we are happy to walk you through what is actually included before you commit. No pressure, no judgment — just clear information so you can make the right call for your vehicle.
